商品の詳細:
|
|
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | MOPAAFR |
| 証明: | TS16949 |
| モデル番号: | 44200-26281 |
| ドキュメント: | 44200-26281.pdf |
|
お支払配送条件:
|
|
| 最小注文数量: | 10個 |
| 価格: | whole price |
| パッケージの詳細: | 茶色の箱 |
| 受渡し時間: | 5～8営業日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 35000PCS-40000PCS/月 |
|
詳細情報 |
|||
| タイプ: | パワーステアリングラック&ピニオンAssy | 車の備品: | トヨタ ハイエースバン / コミューター |
|---|---|---|---|
| 商品の状態: | 真新しい | 保証: | 6～12ヶ月 |
| 材料: | 高張力鋼製ハウジング/精密ラックギヤ | 部品番号: | 44250-26281 |
| ハイライト: | Toyota Lexus HIACE power steering link,Lexus REGIUSACE steering link assembly,44200-26281 power steering rack boot |
||
製品の説明
| Brand | Model | Year from | Year end | Region | Remarks |
| TOYOTA | HIACE/REGIUSACE | 1999/07 | 2002/08 | JP | RZH101,111 |
|
TOYOTA
|
HIACE/REGIUSACE
|
1999/07
|
2004/08
|
JP
|
KZH100,110,120,132..2WD
|
| TOYOTA | HIACE VAN,COMMUTER | 1999/07 | 2005/01 | EU;GR | RZH135,153 |

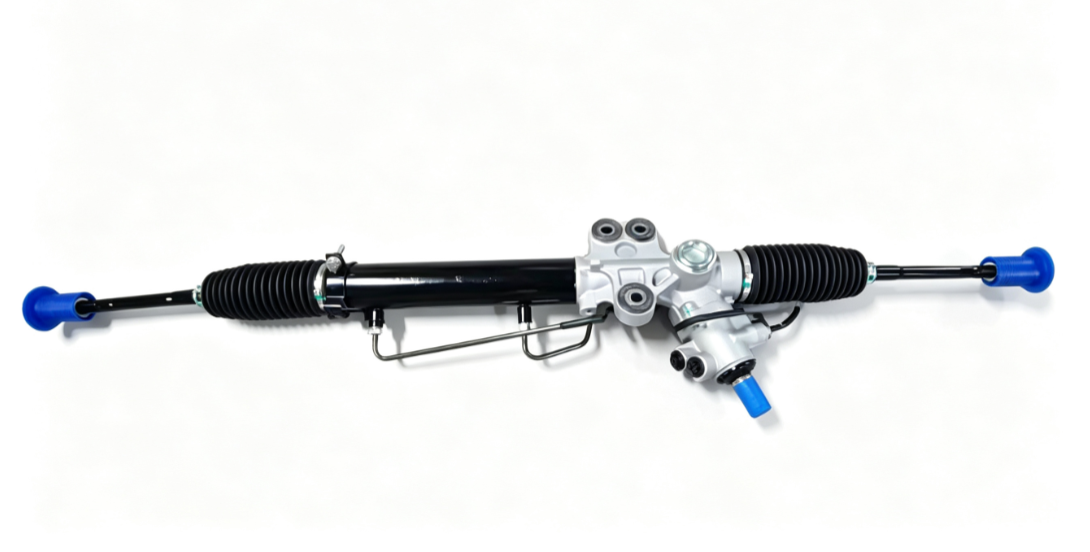

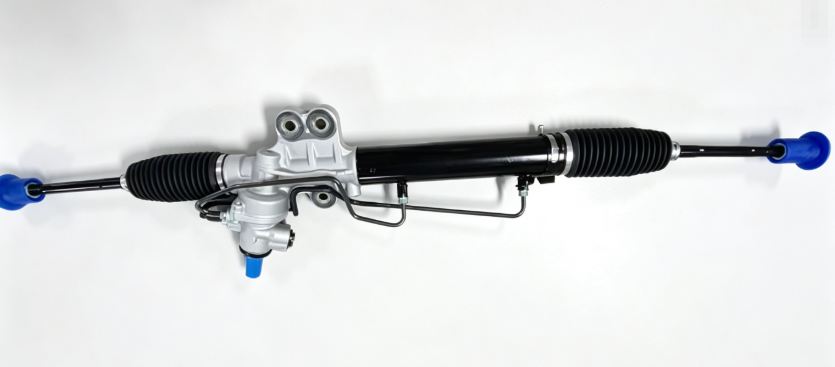

The power steering link assembly is a critical component of your Toyota or Lexus hydraulic steering system. This assembly, also known as the steering rack and pinion, converts the rotational movement of the steering wheel into linear motion to turn the front wheels. When you turn the steering wheel, internal gears move the rack left or right, which then pushes or pulls the tie rods to steer the vehicle. Designed for both passenger cars and SUVs, a properly functioning steering link assembly ensures precise steering control, confident handling, and a smooth driving experience in all conditions. Unlike individual tie rod ends or pump components, this is the complete core steering unit that determines the overall feel and responsiveness of your vehicle's steering. A worn or leaking unit compromises vehicle safety, causes uneven tire wear, and makes handling unpredictable, especially at higher speeds.
Consider replacing your power steering link assembly if you experience any of the following symptoms: Excessive play or looseness in the steering wheel, making precise control difficult. Steering wheel feels vague, unresponsive, or delayed in reaction. Power steering fluid leaks from the rack boots or around the steering gear area. Uneven, choppy, or excessively rapid tire wear on the front tires. Knocking, clunking, or rattle noise when turning the steering wheel or driving over bumps. Stiff or heavy steering, particularly during low-speed maneuvers. Vehicle pulls to one side while driving straight, requiring constant steering correction. The rack boots are cracked, torn, or damaged, allowing contamination to enter the unit. Internal seal failure causing loss of steering assistance.
| Parameter | Details |
|---|---|
| Part Number | 44200-26281 |
| Vehicle Fitment | Toyota / Lexus Models (Please confirm compatibility) |
| Type | Hydraulic Power Steering Rack & Pinion Link Assembly |
| Material | High-strength Steel Housing / Precision-ground Rack Gear / Hardened Pinion Gear |
| Includes | Complete Link Assembly with Inner Tie Rods / Rack Boots / Mounting Bushings (Check actual package) |
| Mounting Type | Bolt-on, Direct OEM Replacement |
| Sealing | High-quality oil seals and O-rings for leak-free operation |
| Surface Treatment | Anti-corrosion coated housing for long service life |
| Packaging | Individual Carton Box |
| Warranty | 12 Months (subject to actual terms) |
Important: Replacing a steering rack is a complex procedure that requires professional mechanical expertise. Disconnect the battery before starting work. Safely raise the vehicle and support it on jack stands. Remove the front wheels. Disconnect the steering column coupling from the pinion shaft. Mark the alignment position before disconnecting. Disconnect the power steering fluid supply and return lines and drain the fluid. Remove the old rack assembly – note the mounting bolt positions and torque specifications. Install the new link assembly, ensuring all mounting bolts are tightened to factory torque specifications. Reconnect all fluid lines and refill with fresh Toyota/Lexus-approved power steering fluid. After installation, bleed the steering system by turning the wheel lock-to-lock several times with the engine running to remove air bubbles. Check for fluid leaks around all hose connections and the rack boots. Critical Step: After any steering rack replacement, a professional wheel alignment (toe and thrust angle adjustment) is MANDATORY to prevent rapid tire wear and ensure safe, straight-line handling. Professional installation is highly recommended.
Toyota and Lexus owners often experience steering rack failure due to: High mileage – As vehicles accumulate over 150,000-200,000 kilometers, internal rack seals and bushings wear out naturally. Internal seal wear – Over time, rack seals harden, crack, and begin leaking fluid, leading to reduced steering assistance and eventual pump damage. Road conditions – Potholes, speed bumps, and uneven roads cause internal wear and create steering play. Fluid contamination – Old, degraded, or contaminated fluid damages internal seals and accelerates component wear. Boot damage – Once the protective boots are torn, dirt, sand, and moisture enter the rack, causing rapid internal failure. This replacement link assembly is designed to address all these issues with upgraded sealing and durable internal components, offering reliable steering performance for years to come.
We stand behind the quality of our products. This power steering link assembly comes with a 12-month warranty against manufacturing defects. If you have any questions or issues, please contact us and we will respond within 24 hours.
Power Steering Fluid (Toyota PSF or equivalent) / Outer Tie Rod Ends / Steering Column Coupling / Power Steering High-Pressure Hose / Power Steering Return Hose / Front Suspension Components
